RG59 Composite Coaxial Cable

code: F1267

To meet the increasing demands for camera cables containing a coax with power and control cores for Pan, Tilt, Zoom (PTZ) or audio, FS stock various types.

Duct grade versions are available for external applications where the cable may be run through ducts or exposed outdoors. For fixed installations, direct burial and where mechanical protection is required, an armoured (SWA) version is offered.

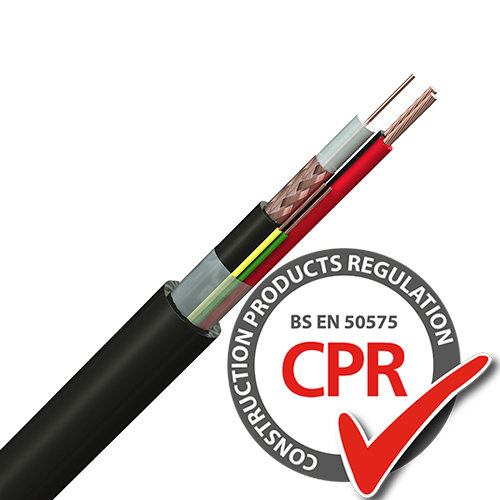

Image representative of product style, product supplied may vary.
Code Description Imp (Ohms) Screen Colour Sheath CPR Class Downloads
390059L-E00
RG59 B/U 75 Ohm RG Coaxial Black LSF
75 Overall Braid Black LSF Eca Datasheet Get Quote
Description RG59 B/U 75 Ohm RG Coaxial Black LSF
Imp (Ohms) 75
Screen Overall Braid
Colour Black
Sheath LSF
CPR Class Eca
Downloads Datasheet
390059H-E00
RG59 B/U 75 Ohm RG Coaxial Black LSHF
75 Overall Braid Black LSHF Eca Datasheet Get Quote
Description RG59 B/U 75 Ohm RG Coaxial Black LSHF
Imp (Ohms) 75
Screen Overall Braid
Colour Black
Sheath LSHF
CPR Class Eca
Downloads Datasheet
3900592L-E00
RG59 B/U + 2 x 0.75mm² Shotgun Black LSF
75 Overall Braid Black LSF Eca Datasheet Get Quote
Description RG59 B/U + 2 x 0.75mm² Shotgun Black LSF
Imp (Ohms) 75
Screen Overall Braid
Colour Black
Sheath LSF
CPR Class Eca
Downloads Datasheet
39005922D
RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black PE Duct
75 Overall Braid Black PE - Datasheet Get Quote
Description RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black PE Duct
Imp (Ohms) 75
Screen Overall Braid
Colour Black
Sheath PE
CPR Class -
Downloads Datasheet
39005922H-E00
RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black LSHF
75 Overall Foil & Braid Black LSHF Eca Get Quote
Description RG59 B/U + 2 x 1.5mm² + 2 x 0.22mm² Composite Coaxial Cable Circular Black LSHF
Imp (Ohms) 75
Screen Overall Foil & Braid
Colour Black
Sheath LSHF
CPR Class Eca
3900592D
RG59 + 2 x 0.75mm² Composite Coaxial Cable Shotgun Black PE Duct
75 Overall Braid Black PE - Datasheet Get Quote
Description RG59 + 2 x 0.75mm² Composite Coaxial Cable Shotgun Black PE Duct
Imp (Ohms) 75
Screen Overall Braid
Colour Black
Sheath PE
CPR Class -
Downloads Datasheet
3910702L-E00
Coax URM 70 + 2 x 0.75mm² Shotgun White LSF
75 Overall Braid White LSF Eca Datasheet Get Quote
Description Coax URM 70 + 2 x 0.75mm² Shotgun White LSF
Imp (Ohms) 75
Screen Overall Braid
Colour White
Sheath LSF
CPR Class Eca
Downloads Datasheet
