EN 50288-7 Instrumentation Cable Individual & Collective Screen Unarmoured PVC

Code: G1495

  • Lightweight
  • 300/500V
  • Individual Screened Pairs

Low capacitance paired cables for use in instrumentation applications. Options include collective aluminium foil screen to prevent outside interference and individual & collective aluminium foil screen to prevent crosstalk between the pairs.

The EN 50288-7 standard allows for many variations including different voltage & temperature ratings, mechanical armours and fire barriers. If you cannot see the type required please call us, we will be able to help.

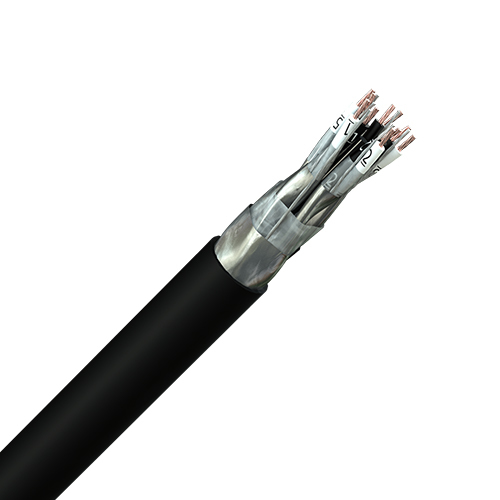

Image representative of product style, product supplied may vary.
Voltage Rating: 300V
Mutual Capacitance: < 150nF/km
L/R Ratio:
0.5mm² & 0.75mm²:   25 µH/Ohm
1.3mm²: 40 µH/Ohm
Temperature Rating:   -30°C to +70°C fixed (minimum -5°C for installation)
Conductor Stranding: EC 60228 Class 1, 2 or 5 plain copper conductors
Flame Retardant:   IEC 60332-1-2
Manufactured To:   EN 50288-7

1.5mm²  conductor sizes are also available on request. These cables have a slightly larger outer diameter.

Larger pair counts are available on request as are alternative voltage ratings.

Type: RE-2Y(st)Y-PiMF – Individual & collective aluminium tape screen.

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, cores twisted into pairs, each pair aluminium/polyester foil screened and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PVC sheath – black or blue.

Pairs:Black/white and numbered.
Code Description mm² No. Pairs Screen Colour Sheath Downloads
E311I0502P0
2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0502P1
2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0504P0
4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 4 Individual & Overall Foil Black PVC Get Quote
Description 4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 4
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0504P1
4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 4 Individual & Overall Foil Blue PVC Get Quote
Description 4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 4
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0508P0
8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 8 Individual & Overall Foil Black PVC Get Quote
Description 8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 8
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0508P1
8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 8 Individual & Overall Foil Blue PVC Get Quote
Description 8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 8
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0512P0
12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 12 Individual & Overall Foil Black PVC Get Quote
Description 12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 12
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0512P1
12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 12 Individual & Overall Foil Blue PVC Get Quote
Description 12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 12
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0524P0
24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 24 Individual & Overall Foil Black PVC Get Quote
Description 24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 24
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0524P1
24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.5 24 Individual & Overall Foil Blue PVC Get Quote
Description 24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 24
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0702P0
2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0702P1
2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0704P0
4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 4 Individual & Overall Foil Black PVC Get Quote
Description 4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 4
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0704P1
4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 4 Individual & Overall Foil Blue PVC Get Quote
Description 4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 4
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0708P0
8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 8 Individual & Overall Foil Black PVC Get Quote
Description 8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 8
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0708P1
8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 8 Individual & Overall Foil Blue PVC Get Quote
Description 8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 8
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0712P0
12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 12 Individual & Overall Foil Black PVC Get Quote
Description 12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 12
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0712P1
12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 12 Individual & Overall Foil Blue PVC Get Quote
Description 12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 12
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I0724P0
24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 24 Individual & Overall Foil Black PVC Get Quote
Description 24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 24
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I0724P1
24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
0.75 24 Individual & Overall Foil Blue PVC Get Quote
Description 24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 24
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I1302P0
2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I1302P1
2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I1304P0
4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 4 Individual & Overall Foil Black PVC Get Quote
Description 4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 4
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I1304P1
4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 4 Individual & Overall Foil Blue PVC Get Quote
Description 4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 4
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I1308P0
8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 8 Individual & Overall Foil Black PVC Get Quote
Description 8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 8
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I1308P1
8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 8 Individual & Overall Foil Blue PVC Get Quote
Description 8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 8
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I1312P0
12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 12 Individual & Overall Foil Black PVC Get Quote
Description 12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 12
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I1312P1
12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 12 Individual & Overall Foil Blue PVC Get Quote
Description 12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 12
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
E311I1324P0
24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 24 Individual & Overall Foil Black PVC Get Quote
Description 24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 24
Screen Individual & Overall Foil
Colour Black
Sheath PVC
E311I1324P1
24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
1.3 24 Individual & Overall Foil Blue PVC Get Quote
Description 24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y-PiMF Individual & Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 24
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
