EN 50288-7 Instrumentation Cable Collective Screen Unarmoured PVC

Code: G1493

  • Lightweight
  • 300/500V
  • Screened

Low capacitance paired cables for use in instrumentation applications. Options include collective aluminium foil screen to prevent outside interference and individual & collective aluminium foil screen to prevent crosstalk between the pairs.

The EN 50288-7 standard allows for many variations including different voltage & temperature ratings, mechanical armours and fire barriers. If you cannot see the type required please call us, we will be able to help.

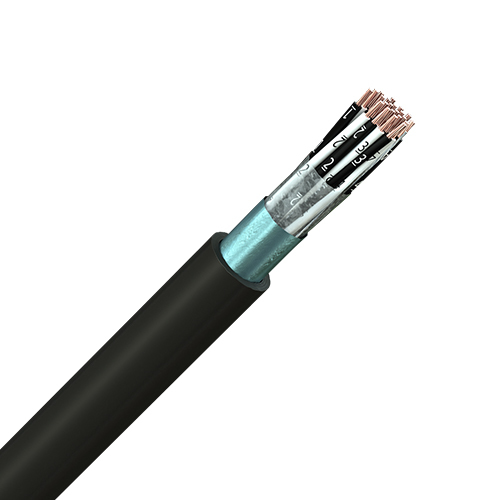

Image representative of product style, product supplied may vary.
Voltage Rating: 300V
Mutual Capacitance: < 150nF/km
L/R Ratio:
0.5mm² & 0.75mm²:   25 µH/Ohm
1.3mm²: 40 µH/Ohm
Temperature Rating:   -30°C to +70°C fixed (minimum -5°C for installation)
Conductor Stranding: EC 60228 Class 1, 2 or 5 plain copper conductors
Flame Retardant:   IEC 60332-1-2
Manufactured To:   EN 50288-7

1.5mm² conductor sizes are also available on request. These cables have a slightly larger outer diameter.

Larger pair counts are available on request as are alternative voltage ratings.

Type: RE-2Y(st)Y – Collective aluminium tape screen.

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, laid up as cores or twisted into pairs, overall aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PVC sheath – black or blue.

Pairs:Black/white and numbered.
Code Description mm² No. Pairs Screen Colour Sheath Downloads
E311O0501P0
1 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
E311O0501P1
1 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0502P0
2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
E311O0502P1
2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0504P0
4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 4 Overall Foil Black PVC Get Quote
Description 4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 4
Screen Overall Foil
Colour Black
Sheath PVC
E311O0504P1
4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 4 Overall Foil Blue PVC Get Quote
Description 4 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 4
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0508P0
8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 8 Overall Foil Black PVC Get Quote
Description 8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 8
Screen Overall Foil
Colour Black
Sheath PVC
E311O0508P1
8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 8 Overall Foil Blue PVC Get Quote
Description 8 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 8
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0512P0
12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 12 Overall Foil Black PVC Get Quote
Description 12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 12
Screen Overall Foil
Colour Black
Sheath PVC
E311O0512P1
12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 12 Overall Foil Blue PVC Get Quote
Description 12 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 12
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0524P0
24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 24 Overall Foil Black PVC Get Quote
Description 24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 24
Screen Overall Foil
Colour Black
Sheath PVC
E311O0524P1
24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.5 24 Overall Foil Blue PVC Get Quote
Description 24 x 2 x 0.5mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.5
No. Pairs 24
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0701P0
1 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
E311O0701P1
1 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0702P0
2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
E311O0702P1
2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0704P0
4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 4 Overall Foil Black PVC Get Quote
Description 4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 4
Screen Overall Foil
Colour Black
Sheath PVC
E311O0704P1
4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 4 Overall Foil Blue PVC Get Quote
Description 4 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 4
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0708P0
8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 8 Overall Foil Black PVC Get Quote
Description 8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 8
Screen Overall Foil
Colour Black
Sheath PVC
E311O0708P1
8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 8 Overall Foil Blue PVC Get Quote
Description 8 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 8
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0712P0
12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 12 Overall Foil Black PVC Get Quote
Description 12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 12
Screen Overall Foil
Colour Black
Sheath PVC
E311O0712P1
12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 12 Overall Foil Blue PVC Get Quote
Description 12 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 12
Screen Overall Foil
Colour Blue
Sheath PVC
E311O0724P0
24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 24 Overall Foil Black PVC Get Quote
Description 24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 24
Screen Overall Foil
Colour Black
Sheath PVC
E311O0724P1
24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
0.75 24 Overall Foil Blue PVC Get Quote
Description 24 x 2 x 0.75mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 0.75
No. Pairs 24
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1301P0
1 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
E311O1301P1
1 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1302P0
2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
E311O1302P1
2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1304P0
4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 4 Overall Foil Black PVC Get Quote
Description 4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 4
Screen Overall Foil
Colour Black
Sheath PVC
E311O1304P1
4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 4 Overall Foil Blue PVC Get Quote
Description 4 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 4
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1308P0
8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 8 Overall Foil Black PVC Get Quote
Description 8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 8
Screen Overall Foil
Colour Black
Sheath PVC
E311O1308P1
8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 8 Overall Foil Blue PVC Get Quote
Description 8 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 8
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1312P0
12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 12 Overall Foil Black PVC Get Quote
Description 12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 12
Screen Overall Foil
Colour Black
Sheath PVC
E311O1312P1
12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 12 Overall Foil Blue PVC Get Quote
Description 12 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 12
Screen Overall Foil
Colour Blue
Sheath PVC
E311O1324P0
24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 24 Overall Foil Black PVC Get Quote
Description 24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 24
Screen Overall Foil
Colour Black
Sheath PVC
E311O1324P1
24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
1.3 24 Overall Foil Blue PVC Get Quote
Description 24 x 2 x 1.3mm² EN 50288 RE-2Y(st)Y Collective Aluminium Tape Screen PVC Sheath
mm² 1.3
No. Pairs 24
Screen Overall Foil
Colour Blue
Sheath PVC
