Def Stan 7-2 Type D Individual Braid Screened Control Cable PVC

code: F1308

  • Versatile, flexible control cable
  • Compact sizing, high working voltage
  • Wide range of sizes
  • Flexible PVC jacket
  • Individually screened
Originally developed for military and defence, Def Stan 7-2 (Type D) cables (also known as Defence Standard cables) are now widely used in many industries for a variety of different applications.

Def Stan cables are a robust and economical choice which can also be oversheathed or armoured for duct installation or direct burial. Def Stan cables should not be used a mains connection cables. Applications include data processing, information transfer, process control and security as well as many industrial applications.

This Def Stan (Type D) cable has a tinned copper wire braid screen around each core for EMI (electromagnetic interference) protection. Def Stan cables feature tinned copper wire strands, PVC insulation and a black PVC outer jacket. Offered in a range of different core counts.

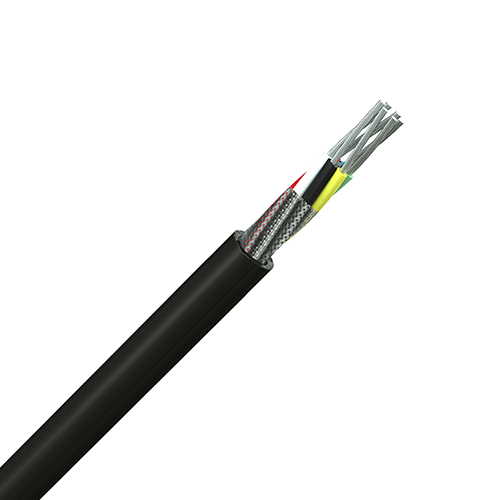

Image representative of product style, product supplied may vary.
Individually Screened type 'D' has a tinned copper wire braid screen around each core.
Voltage Rating:  440V rms up to 1600Hz
Temperature Rating:  0°C to +70°C
Bend Radius: 7.5 x Cable OD static
Current Rating:  1 amp
Nominal Conductor Max. Resistance @ 20°C: 92 Ohm/km

Normally packed on 100m, 500m or 1000m spools, cables can also be cut to length when required.
Code Description No. Cores mm² Screen Colour Sheath Downloads
39600202
7-2-2D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
2 0.22 Individual Braid Black PVC Get Quote
Description 7-2-2D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 2
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
39600203
7-2-3D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
3 0.22 Individual Braid Black PVC Get Quote
Description 7-2-3D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 3
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
39600204
7-2-4D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
4 0.22 Individual Braid Black PVC Get Quote
Description 7-2-4D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 4
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
39600206
7-2-6D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
6 0.22 Individual Braid Black PVC Get Quote
Description 7-2-6D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 6
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
39600212
7-2-12D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
12 0.22 Individual Braid Black PVC Get Quote
Description 7-2-12D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 12
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
39600218
7-2-18D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
18 0.22 Individual Braid Black PVC Get Quote
Description 7-2-18D Def-Standard PVC Multicore Individually Braid Screened Cores 0.22mm² Black
No. Cores 18
mm² 0.22
Screen Individual Braid
Colour Black
Sheath PVC
