BS 5308/PAS 5308 Part 2 Type 2 Instrumentation Cable Individual & Collective Screen Armoured PVC

Instrumentation

Call Sales on
+44 1727 849 841
Click to Email Us
We will reply within 3 hours
Monday-Friday 8am-5:30pm
Connect with us on LinkedIn
Follow us @fscglobal
FSC logo
BS-5308/PAS-5308-Part-2-Type-2-Instrumentation-Cable-Individual-&-Collective-Screen-Armoured-PVC-Grid-imageBS-5308/PAS-5308-Part-2-Type-2-Instrumentation-Cable-Individual-&-Collective-Screen-Armoured-PVC-Product-Image
BS-5308/PAS-5308-Part-2-Type-2-Instrumentation-Cable-Individual-&-Collective-Screen-Armoured-PVC-Grid-image
BS-5308/PAS-5308-Part-2-Type-2-Instrumentation-Cable-Individual-&-Collective-Screen-Armoured-PVC-Product-Image
Code: G1538

  • British Standard
  • 300/500V Rated
  • SWA Protection
Product Description

Designed for process control and instrumentation use in harsh environments, BS 5308 cables incorporate GSWA armour for mechanical protection. The various screening options ensure that interference is prevented when cables are installed in an electrostatic noisy application. They can be used for indoor, outdoor and direct burial applications.

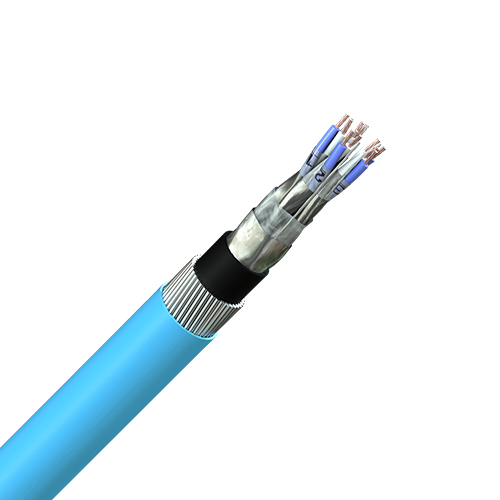

Image representative of product style, product supplied may vary.
Technical Information
Voltage Rating:   300V/500V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Manufactured To: PAS 5308

Capacitance figures are mutual @ 1kHz.
Construction

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PVC insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PE bedding, GSWA armour, RP-PVC sheath – black or blue.

Pair Identification
Colour coded in accordance to PAS 5308-2
Code Description Armour mm² No. Pairs Screen Colour Sheath Downloads
5322I05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.75 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 1.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.75 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 1.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.75 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 1.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 0.75 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Get Quote
SWA 1.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5322I05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I070201
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.75 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 1.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.75 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 1.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I071001
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.75 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 1.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I072001
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 0.75 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5322I15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Get Quote
SWA 1.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
