BS 5308/PAS 5308 Part 2 Type 1 Instrumentation Cable Individual & Collective Screen Unarmoured PVC

Code: G1487

  • British Standard
  • 300/500V Rated
  • Lightweight Design

Developed for communication and instrumentation signalling, BS 5308 part 2 cables are now widely used in a variety of industrial and commercial applications. The screening combination offers excellent protection from EMI. These cables are designed for fixed applications.

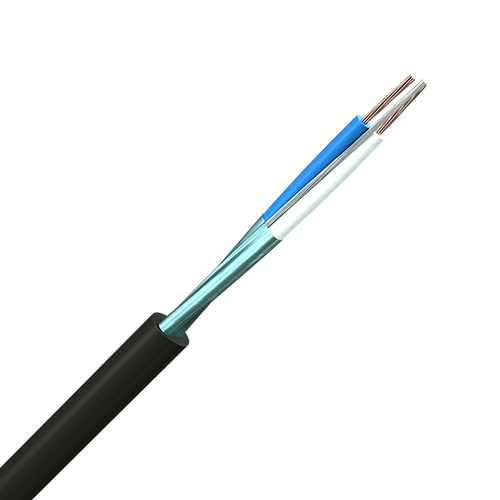

Image representative of product style, product supplied may vary.
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Manufactured To: PAS 5308

0.6/1kV versions can be made to order.

RP-PVC is a reduced propagation version of PVC producing no more than 15% HCl emissions if burnt. It is not Low Smoke Halogen Free.

Capacitance figures are mutual @ 1kHz.

Larger pair counts and triple configurations are available on request.

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PVC insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, RP-PVC sheath – black or blue.

Colour coded in accordance to PAS 5308-2
Code Description mm² No. Pairs Screen Colour Sheath Downloads
5311I05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
0.75 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5321I15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
1.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5311I05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I07021
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I07021
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I07101
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I07101
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I07201
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I07201
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
0.75 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5311I15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5321I15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
1.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
