BS 5308/PAS 5308 Part 2 Type 1 Instrumentation Cable Collective Screen Unarmoured PVC

code: G1484

  • British Standard
  • 300/500V Rated
  • Lightweight Design

Developed for communication and instrumentation signalling, BS 5308 part 2 cables are now widely used in a variety of industrial and commercial applications. The screening combination offers excellent protection from EMI. These cables are designed for fixed applications.

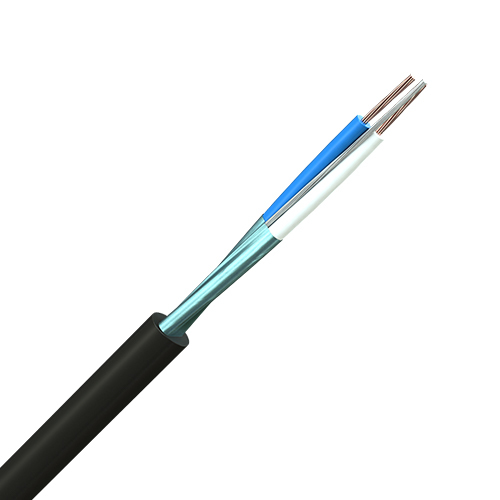

Image representative of product style, product supplied may vary.
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Manufactured To: PAS 5308

Type: CAT – Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PVC insulation, laid up as cores or twisted into pairs or triples, overall aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, RP-PVC sheath – black or blue.

Colour coded in accordance to PAS 5308-2
Code Description mm² No. Pairs Screen Colour Sheath Downloads
5321O05010
1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.5 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
5321O07010
1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.75 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
5321O15010
1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
1.5 1 Overall Foil Black PVC Get Quote
Description 1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath PVC
5321O05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.5 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
5321O07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.75 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
5321O15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
1.5 2 Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath PVC
5321O05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.5 5 Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath PVC
5321O07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.75 5 Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath PVC
5321O15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
1.5 5 Overall Foil Black PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath PVC
5321O05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.5 10 Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath PVC
5321O07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.75 10 Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath PVC
5321O15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
1.5 10 Overall Foil Black PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath PVC
5321O05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.5 20 Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath PVC
5321O07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
0.75 20 Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath PVC
5321O15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
1.5 20 Overall Foil Black PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath PVC
5321O05011
1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.5 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
5321O07011
1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.75 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
5321O15011
1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
1.5 1 Overall Foil Blue PVC Get Quote
Description 1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath PVC
5321O05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.5 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
5321O07021
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.75 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
5321O15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
1.5 2 Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath PVC
5321O05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.5 5 Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath PVC
5321O07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.75 5 Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath PVC
5321O15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
1.5 5 Overall Foil Blue PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath PVC
5321O05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.5 10 Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath PVC
5321O07101
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.75 10 Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath PVC
5321O15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
1.5 10 Overall Foil Blue PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath PVC
5321O05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.5 20 Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath PVC
5321O07201
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
0.75 20 Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath PVC
5321O15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
1.5 20 Overall Foil Blue PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 2 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath PVC
