BS 5308/PAS 5308 Part 1 Type 2 Instrumentation Cable Individual & Collective Screen Armoured PVC

code: G1491

  • British Standard
  • Low Capacitance Insulation
  • SWA Protection

The steel wire armour (SWA) used on BS 5308 part 1 type 2 cables provides superb protection when the cable is installed in aggressive environments. They are available with collective aluminium tape screening (CAT) or individual and collective aluminium tape screens (ICAT).

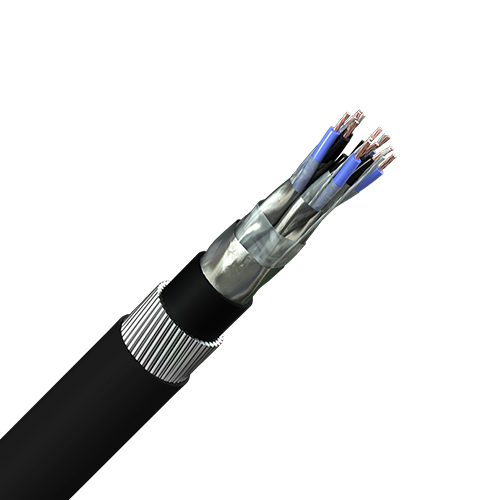

Image representative of product style, product supplied may vary.
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Manufactured To: PAS 5308

Increased flame retardant versions to IEC 60332-3-24 Cat C and fire resistant versions to IEC 60331-21 are available on request.

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PE bedding, GSWA armour, RP-PVC sheath – black or blue.

ICAT: Change text to read colour coded in accordance to PAS 5308-1

Code Description Armour mm² No. Pairs Screen Colour Sheath Downloads
5312I05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 2 Individual & Overall Foil Black PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 5 Individual & Overall Foil Black PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 10 Individual & Overall Foil Black PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 20 Individual & Overall Foil Black PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath PVC
5312I05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I07021
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 2 Individual & Overall Foil Blue PVC Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 5 Individual & Overall Foil Blue PVC Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I07101
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 10 Individual & Overall Foil Blue PVC Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I07201
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
5312I15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 20 Individual & Overall Foil Blue PVC Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured PVC Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath PVC
