BS 5308/PAS 5308 Part 1 Type 2 Instrumentation Cable Individual & Collective Screen Armoured LSHF

code: G1492

  • British Standard
  • Low Capacitance Insulation
  • Low Smoke Halogen Free

Low Smoke Halogen Free BS 5308 cables are ideal for use in commercial and industrial applications where smoke/toxic gas release is a problem in the event of a fire and there is a risk of mechanical damage. Although they were originally designed for instrumentation applications BS 5308 cables are now used within a wide variety of industries including commercial building management control.

BS 5308 cables are available with collective aluminium tape screening (CAT) or individual and collective aluminium tape screens (ICAT) to prevent electrical interference and crosstalk.

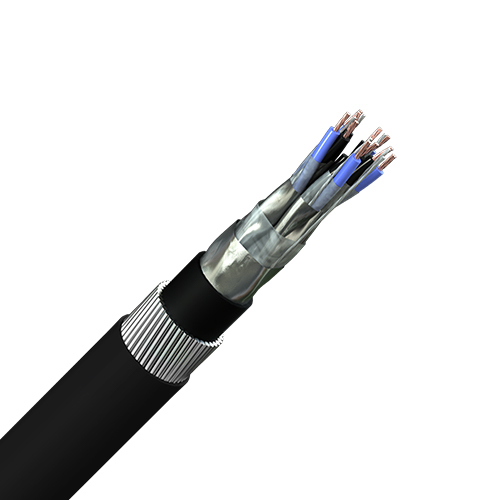

Image representative of product style, product supplied may vary.
Voltage Rating:   300V/500V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Smoke Emission:IEC 61034-1 & 2
Halogen Emission:IEC 60754-1 & 2
Manufactured To: PAS 5308

Increased flame retardant versions to IEC 60332-3-24 Cat C and fire resistant versions to IEC 60331-21 are available on request.

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, XLPE insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, PE bedding, GSWA armour, LSHF sheath – black or blue.

ICAT: Change text to read colour coded in accordance to PAS 5308-1

Code Description Armour mm² No. Pairs Screen Colour Sheath Downloads
5312I05020H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I07020H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I15020H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I05050H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I07050H
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I15050H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I05100H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I07100H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I15100H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I05200H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.5 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I07200H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 0.75 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I15200H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
SWA 1.5 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5312I05021H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I07021H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I15021H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I05051H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I07051H
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I15051H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I05101H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I07101H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I15101H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I05201H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.5 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I07201H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 0.75 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5312I15201H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
SWA 1.5 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 2 Armoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
Armour SWA
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
