BS 5308/PAS 5308 Part 1 Type 1 Instrumentation Cable Individual & Collective Screen Unarmoured PVC

Code: G1486

  • Lightweight
  • 300/500V
  • Individual Screened Pairs

Extensively used for process control and signalling within the petrochemical industry, BS 5308 is also used in other industrial and commercial applications. Available with collective aluminium tape screening (CAT) or individual and collective aluminium tape screens (ICAT) to prevent electrical interference and crosstalk. These cables are suitable for use on cables trays and fixed installation where risk of mechanical damage is minimal.

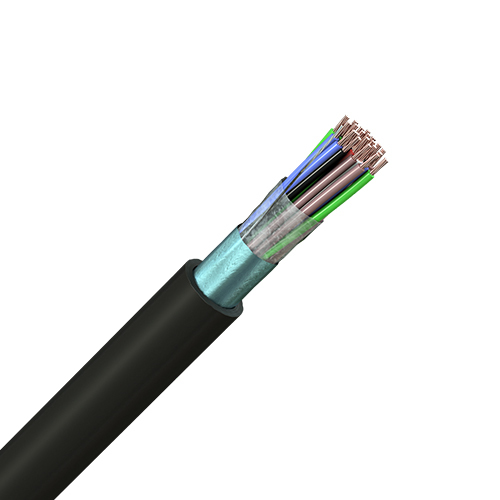

Image representative of product style, product supplied may vary.
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Manufactured To: PAS 5308

Increased flame retardant versions to IEC 60332-3-24 Cat C and fire resistant versions to IEC 60331-21 are available on request.

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, RP-PVC sheath – black or blue.

Colour coded in accordance to PAS 5308-2
Code Description mm² No. Pairs Screen Colour Downloads
5311I05020
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 2 Individual & Overall Foil Black Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
5311I05021
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 2 Individual & Overall Foil Blue Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
5311I05050
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 5 Individual & Overall Foil Black Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
5311I05051
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 5 Individual & Overall Foil Blue Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
5311I05100
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 10 Individual & Overall Foil Black Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
5311I05101
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 10 Individual & Overall Foil Blue Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
5311I05200
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 20 Individual & Overall Foil Black Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
5311I05201
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 20 Individual & Overall Foil Blue Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
5311I07020
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 2 Individual & Overall Foil Black Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
5311I07021
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 2 Individual & Overall Foil Blue Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
5311I07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 5 Individual & Overall Foil Black Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
5311I07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 5 Individual & Overall Foil Blue Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
5311I07100
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 10 Individual & Overall Foil Black Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
5311I07101
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 10 Individual & Overall Foil Blue Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
5311I07200
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 20 Individual & Overall Foil Black Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
5311I07201
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 20 Individual & Overall Foil Blue Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
5311I15020
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 2 Individual & Overall Foil Black Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
5311I15021
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 2 Individual & Overall Foil Blue Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
5311I15050
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instruementation Individually & Collectively Screened Pairs Black
1.5 5 Individual & Overall Foil Black Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instruementation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
5311I15051
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 5 Individual & Overall Foil Blue Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
5311I15100
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 10 Individual & Overall Foil Black Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
5311I15101
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 10 Individual & Overall Foil Blue Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
5311I15200
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 20 Individual & Overall Foil Black Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
5311I15201
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 20 Individual & Overall Foil Blue Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
