BS 5308/PAS 5308 Part 1 Type 1 Instrumentation Cable Individual & Collective Screen Unarmoured LSHF

code: G1488

  • British Standard
  • Low Capacitance Insulation
  • Low Smoke Halogen Free

Low Smoke Halogen Free (LSHF) versions of BS 5308 are widely used in industrial and commercial installations where safety to personnel and equipment is critical. The are available with collective aluminium tape screening (CAT) or individual and collective aluminium tape screens (ICAT) to prevent electrical interference from equipment nearby or crosstalk between the pairs.

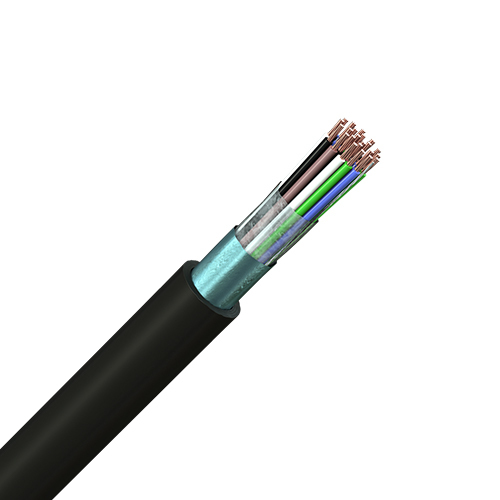

Image representative of product style, product supplied may vary.
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Smoke Emission:IEC 61034-1 & 2
Halogen Emission:IEC 60754-1 & 2
Manufactured To: PAS 5308

Increased flame retardant versions to IEC 60332-3-24 Cat C and fire resistant versions to IEC 60331-21 are available on request.

Type: ICAT – Individual & Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, XLPE insulation, cores twisted into pairs or triples, each pair aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, units laid up, collective aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, LSHF sheath – black or blue.

Colour coded in accordance to PAS 5308-2
Code Description mm² No. Pairs Screen Colour Sheath Downloads
5311I05020H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I07020H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I15020H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 2 Individual & Overall Foil Black LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I05050H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I07050H
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I15050H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instruementation Individually & Collectively Screened Pairs Black
1.5 5 Individual & Overall Foil Black LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instruementation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I05100H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I07100H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I15100H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 10 Individual & Overall Foil Black LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I05200H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.5 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I07200H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
0.75 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I15200H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
1.5 20 Individual & Overall Foil Black LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Black
Sheath LSHF
5311I05021H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I07021H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I15021H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 2 Individual & Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I05051H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I07051H
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I15051H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 5 Individual & Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I05101H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I07101H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I15101H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 10 Individual & Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I05201H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.5 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I07201H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
0.75 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
5311I15201H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
1.5 20 Individual & Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Individually & Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Individual & Overall Foil
Colour Blue
Sheath LSHF
