BS 5308/PAS 5308 Part 1 Type 1 Instrumentation Cable Collective Screen Unarmoured LSHF

Instrumentation

Call Sales on
+44 1727 849 841
Click to Email Us
We will reply within 3 hours
Monday-Friday 8am-5:30pm
Connect with us on LinkedIn
Follow us @fscglobal
FSC logo
BS-5308/PAS-5308-Part-1-Type-1-Instrumentation-Cable-Collective-Screen-Unarmoured-LSHF-Grid-imageBS-5308/PAS-5308-Part-1-Type-1-Instrumentation-Cable-Collective-Screen-Unarmoured-LSHF-Product-Image
BS-5308/PAS-5308-Part-1-Type-1-Instrumentation-Cable-Collective-Screen-Unarmoured-LSHF-Grid-image
BS-5308/PAS-5308-Part-1-Type-1-Instrumentation-Cable-Collective-Screen-Unarmoured-LSHF-Product-Image
code: G1485

  • British Standard
  • Low Capacitance Insulation
  • Lightweight Design
Product Description

Low Smoke Halogen Free (LSHF) versions of BS 5308 are widely used in industrial and commercial installations where safety to personnel and equipment is critical. The are available with collective aluminium tape screening (CAT) or individual and collective aluminium tape screens (ICAT) to prevent electrical interference from equipment nearby or crosstalk between the pairs.

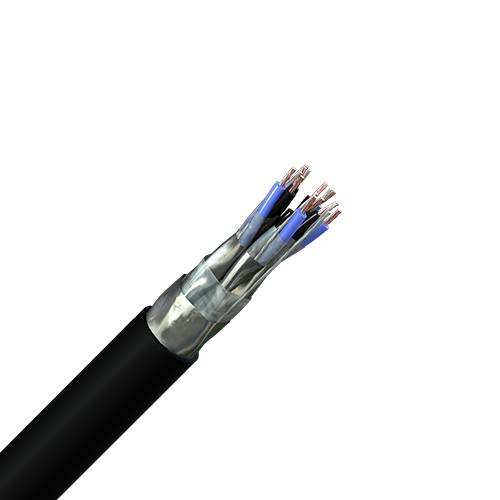

Image representative of product style, product supplied may vary.
Technical Information
Voltage Rating:   300V
Temperature Rating: +65°C (minimum 0°C for installation)
Conductor Stranding: IEC 60228 Class 1, 2 or 5 plain copper conductors
L/R Ratio:
0.5mm² & 0.75mm²: 25 µH/Ohm
1.5mm²: 40 µH/Ohm
Flame Retardant: IEC 60332-1-2
Smoke Emission:IEC 61034-1 & 2
Halogen Emission:IEC 60754-1 & 2
Manufactured To: PAS 5308

Increased flame retardant versions to IEC 60332-3-24 Cat C and fire resistant versions to IEC 60331-21 are available on request.
Construction

Type: CAT – Collective Aluminium Tape Screen

Plain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, XLPE insulation, laid up as cores or twisted into pairs or triples, overall aluminium/polyester foil screen and 0.5mm² tinned copper drain wire, LSHF sheath – black or blue.

Pair Identification
Colour coded in accordance to PAS 5308-1
Code Description mm² No. Pairs Screen Colour Sheath Downloads
5311O05010H
1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.5 1 Overall Foil Black LSHF Get Quote
Description 1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath LSHF
5311O07010H
1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.75 1 Overall Foil Black LSHF Get Quote
Description 1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath LSHF
5311O15010H
1x2x1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
1.5 1 Overall Foil Black LSHF Get Quote
Description 1x2x1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 1
Screen Overall Foil
Colour Black
Sheath LSHF
5311O05020H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.5 2 Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath LSHF
5311O07020H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.75 2 Overall Foil Black LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath LSHF
5311O15020H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
1.5 2 Overall Foil Black LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 2
Screen Overall Foil
Colour Black
Sheath LSHF
5311O05050H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.5 5 Overall Foil Black LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath LSHF
5311O15050H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
1.5 5 Overall Foil Black LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath LSHF
5311O05100H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.5 10 Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath LSHF
5311O07100H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.75 10 Overall Foil Black LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath LSHF
5311O15100H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collective Screen Black
Get Quote
1.5 10 Overall Foil Black LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collective Screen Black
mm² 1.5
No. Pairs 10
Screen Overall Foil
Colour Black
Sheath LSHF
5311O05200H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.5 20 Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.5
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath LSHF
5311O07200H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
0.75 20 Overall Foil Black LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath LSHF
5311O15200H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
Get Quote
1.5 20 Overall Foil Black LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Black
mm² 1.5
No. Pairs 20
Screen Overall Foil
Colour Black
Sheath LSHF
5311O05011H
1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.5 1 Overall Foil Blue LSHF Get Quote
Description 1 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O07011H
1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.75 1 Overall Foil Blue LSHF Get Quote
Description 1 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O15011H
1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
1.5 1 Overall Foil Blue LSHF Get Quote
Description 1 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 1
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O05021H
2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.5 2 Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O07021H
2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.75 2 Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O15021H
2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
1.5 2 Overall Foil Blue LSHF Get Quote
Description 2 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 2
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O05051H
5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.5 5 Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O15051H
5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
1.5 5 Overall Foil Blue LSHF Get Quote
Description 5 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O05101H
10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.5 10 Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O07101H
10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.75 10 Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O15101H
10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
1.5 10 Overall Foil Blue LSHF Get Quote
Description 10 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 10
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O05201H
20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.5 20 Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.5
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O07201H
20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
0.75 20 Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O15201H
20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
Get Quote
1.5 20 Overall Foil Blue LSHF Get Quote
Description 20 x 2 x 1.5mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured LSHF Instrumentation Collectively Screened Pairs Blue
mm² 1.5
No. Pairs 20
Screen Overall Foil
Colour Blue
Sheath LSHF
5311O07050
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
Get Quote
0.75 5 Overall Foil Black PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Black
mm² 0.75
No. Pairs 5
Screen Overall Foil
Colour Black
Sheath PVC
5311O07051
5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
Get Quote
0.75 5 Overall Foil Blue PVC Get Quote
Description 5 x 2 x 0.75mm² BS 5308 / PAS 5308 Part 1 Type 1 Unarmoured PVC Instrumentation Collectively Screened Pairs Blue
mm² 0.75
No. Pairs 5
Screen Overall Foil
Colour Blue
Sheath PVC
