Access Control Cable

code: F1276

  • Pure copper conductors - we never use CCA
  • High quality alternative to genuine Belden
  • LSF, LSZH, Duct Grade and SWA Armoured
Specifically designed for proprietary access control systems, these cables are widely used in public buildings including hospitals, government and local authority offices as well as commercial and retail organisations where security and safety are important.

The Low Smoke Halogen Free versions ensure minimum risk in the event of fire to both property and personnel.

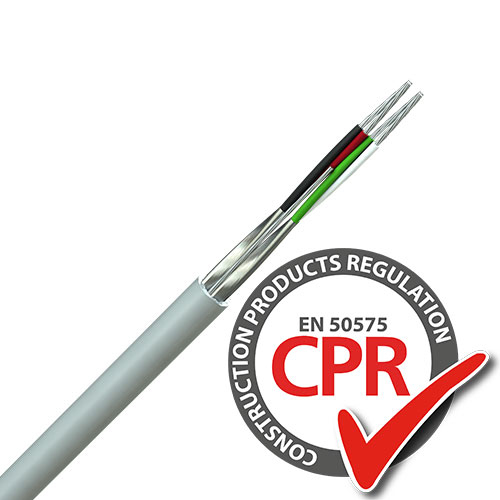

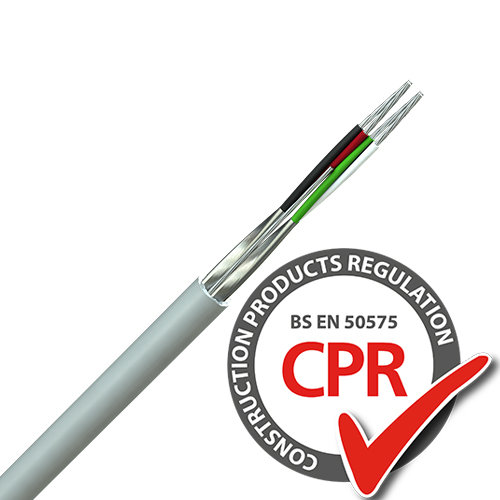

Image representative of product style, product supplied may vary.
Code Description Alt to Belden Armour AWG No. Pairs Screen Colour Sheath CPR Class Downloads
2802PODGH
2 x 2 x 28AWG Access Control Grey LSHF
8132NH - 28 2 Overall Foil & Braid Grey LSHF - Get Quote
Description 2 x 2 x 28AWG Access Control Grey LSHF
Alt to Belden 8132NH
Armour -
AWG 28
No. Pairs 2
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class -
Downloads
2202PIFRC
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE External
8723 - 22 2 Individual Foil Black PE - Datasheet Get Quote
Description 2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE External
Alt to Belden 8723
Armour -
AWG 22
No. Pairs 2
Screen Individual Foil
Colour Black
Sheath PE
CPR Class -
Downloads
Downloads Datasheet
2202PIFRD
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE Duct
8723 - 22 2 Individual Foil Black PE - Datasheet Get Quote
Description 2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black PE Duct
Alt to Belden 8723
Armour -
AWG 22
No. Pairs 2
Screen Individual Foil
Colour Black
Sheath PE
CPR Class -
Downloads
Downloads Datasheet
2202PIFRA
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black SWA
8723 SWA 22 2 Individual Foil Black PE - Datasheet Get Quote
Description 2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Black SWA
Alt to Belden 8723
Armour SWA
AWG 22
No. Pairs 2
Screen Individual Foil
Colour Black
Sheath PE
CPR Class -
Downloads
Downloads Datasheet
2202PIFRH06-E00
2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF
8723 - 22 2 Individual Foil Violet LSHF - Datasheet Get Quote
Description 2 x 2 x 22(7)AWG Individually Screened Two Pair Data 22AWG Violet LSHF
Alt to Belden 8723
Armour -
AWG 22
No. Pairs 2
Screen Individual Foil
Colour Violet
Sheath LSHF
CPR Class -
Downloads
Downloads Datasheet
2203PIFRH-E00
3 x 2 x 22(7)AWG Individually Screened Multpair Data 22AWG Low Capacitance RS422 Grey LSHF
8777NH - 22 3 Individual Foil Grey LSHF Eca Datasheet Datasheet Get Quote
Description 3 x 2 x 22(7)AWG Individually Screened Multpair Data 22AWG Low Capacitance RS422 Grey LSHF
Alt to Belden 8777NH
Armour -
AWG 22
No. Pairs 3
Screen Individual Foil
Colour Grey
Sheath LSHF
CPR Class Eca
Downloads 2203PIFRH to 2212PIFRH
Downloads Datasheet Datasheet
2203PIFRD
3 x 2 x 22(7)AWG Individually Screened Multipair Data 22AWG Low Capacitance RS422 Black PE Duct
8777 - 22 3 Individual Foil Black PE - Datasheet Get Quote
Description 3 x 2 x 22(7)AWG Individually Screened Multipair Data 22AWG Low Capacitance RS422 Black PE Duct
Alt to Belden 8777
Armour -
AWG 22
No. Pairs 3
Screen Individual Foil
Colour Black
Sheath PE
CPR Class -
Downloads
Downloads Datasheet
2203PIFRA
3 x 2 x 22(7)AWG Individually Screened Multipair Data 22AWG Low Capacitance RS422 Black SWA
8777 SWA 22 3 Individual Foil Black PE - Get Quote
Description 3 x 2 x 22(7)AWG Individually Screened Multipair Data 22AWG Low Capacitance RS422 Black SWA
Alt to Belden 8777
Armour SWA
AWG 22
No. Pairs 3
Screen Individual Foil
Colour Black
Sheath PE
CPR Class -
Downloads
2402POHPH-E00
2 x 2 x 24(7)AWG Overall Foil & Braid Screened Paired Data 24AWG RS485 Low Capacitance Grey LSHF
9842 - 24 2 Overall Foil & Braid Grey LSHF Eca Datasheet Get Quote
Description 2 x 2 x 24(7)AWG Overall Foil & Braid Screened Paired Data 24AWG RS485 Low Capacitance Grey LSHF
Alt to Belden 9842
Armour -
AWG 24
No. Pairs 2
Screen Overall Foil & Braid
Colour Grey
Sheath LSHF
CPR Class Eca
Downloads 2401POHPH to 2404POHPH
Downloads Datasheet
